EP-300
Brand: Empire
Model: EP-300
Min Order: 1 set
Payment: T/T L/C Paypal Western Union

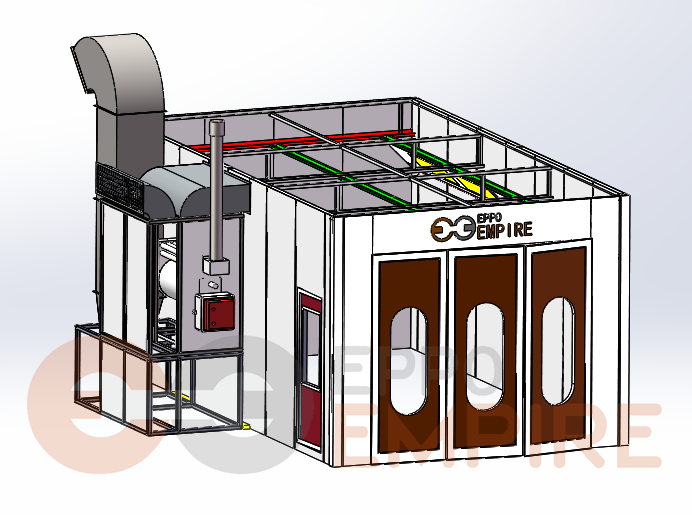

Add to BasketInquirePickup Truck Spray Booth
|
Dimensions:
|
Length |
Width |
Height |
|||
|
(mm) |
(inch) |
(mm) |
(inch) |
(mm) |
(inch) |
|
|
Booth Exterior |
8700 |
28'54" |
5800 |
19'03' |
4250 |
13.94" |
|
Booth Interior |
8600 |
28'22" |
4500 |
14'76" |
3500 |
11'48' |
|
Entrance Size |
|
|
3000 |
9'84" |
3500 |
11'48' |
|
Personnel Door |
|
|
800 |
2'62' |
2000 |
6'56" |
Features:
Total Power 21 KW
Voltage:
380V/50Hz/3phz
220V/50Hz/3phz
Noise < 80 db
Wall panel
Rock wool 50mm, both side color steel, thickness 0.476mm
Basement System
- Metal Pedestal (Galvanized), with Filter Tray* 2rows & Ramps a couple
- Grid Plates (Galvanized)* 2rows
- Diamond Plates (Powder Coated or Galvanized)* 3rows
Heating System
- Diesel Burner (Italy RIELLO, RG5S)* 1unit
- Heating Ex-changer (Stainless Steel material)* 1unit
- 8~15 minutes reaching the baking temperature 60~80 degree Celsius
- Cabinet (rock-wool) * 1unit; Air Ducts * 2pcs
Air System
- 2 units air intake fans, 5.5 kw each
- 1 unit air exhaust fan, 7.5kw
- 0.35 m/s air speed
- Cabinet for the fans* 1unit, and Air Ducts* 3pcs, and Air Damper (pneumatic)* 1unit
Filter System
-Primary Filter* 1set, filtering rate > 83%
- Air-Intake Filter* 1set, filtering rate > 97%
- Air-Exhaust Filter* 1set, filtering rate > 70%
Illumination
- Ceiling Lights * 32pcs, 18w each, with Light Fixtures, LED tube,anti-explosion design
- Side Lights * 32pcs, 18w each, with Light Fixtures, LED tube, anti-explosion design
Control Box
- 1unit, including Spray Switch, Baking Switch, Light Switch, Emergency Stop, etc.
Included
- All hardware, fasteners, and sealants, A couple of ramps.
Optional Part
-Infrared Lamp
-Natural gas heating system
-Heating recycle system
-Water based paint system
-Water-proof roof for outdoor booth installation.
